Pixid 300

Pixid 300 Series

Signature active alignment system with assembly and test capabilities

Pixid 500

Pixid 500 Series

Enhanced active alignment system available in both single and dual-head models

Our Pixid active alignment systems are designed to assemble and test optical modules to exacting standards and enable production of the most sophisticated optics in consumer electronics.


Features

Active Alignment

Leading-edge ative alignment technology for uniform clarity of optical modules in up to 6 DOF

Adaptive Intelligence

Dynamic process control software that uses real-time feedback to improve yield

Optical Module Assembly

Advanced production systems for the assembly and test of camera and projection modules

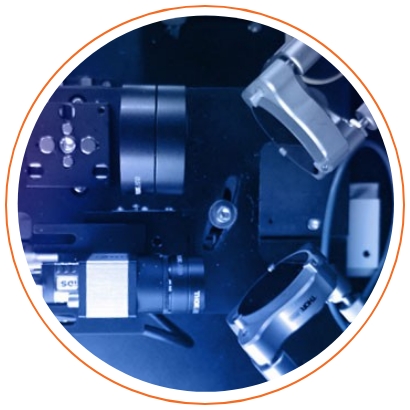

Advanced Optical Tests

Sophisticated test algorithms for the comprehensive functional characterization of optics

High Volume Systems

Efficient cycle times result in ability to provide high volume production levels

Lean Manufacturing

Highly efficient process and design of systems reduces lead times for customers


Results

1
Compact Optics with Maximum Clarity
2
Effective Functional Testing
4
Higher Yield Through Enhanced Process Controls
4
Streamlined Manufacturing

Benefits

Advanced Design
Fast Delivery
High Yield
Small System Footprint
Production Scalability
Ease of Operation
Global Management
Reliability & Support
Happy Customers

Specifications

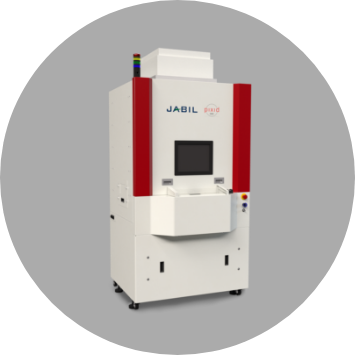

Pixid 300


  • Suitable Applications
    • Cameras
    • Laser Projection
    • Image Projection
  • UPH
    • 240*
  • AA Heads
    • 1
  • Resolution (linear)
    • < 0.2µm
  • Resolution (Angular)
    • < 0.01 deg
  • Auto-Load / Upload Option
    • No
    • (3rd party integration possible)
  • Footprint
    • 1.1m x 1.2m
  • Interface Options
    • I²C
    • SPI
    • MIPI
    • HiSpi
    • Sub-VLDS
    • SLVS Parallel
  • Operating System
    • VxWorks (RT)
    • Windows Embedded Standard 7
  • Dispense Technology
    • Positive Displacement
    • Micro-Jetting
  • UV Cure Wavelengths
    • 365nm
    • 385nm
    • Broadband UV

Pixid 500-S


  • Suitable Applications
    • Cameras
    • Laser Projection
    • Image Projection
  • UPH
    • 240*
  • AA Heads
    • 1
  • Resolution (linear)
    • < 0.2µm
  • Resolution (Angular)
    • < 0.01 deg
  • Auto-Load / Upload Option
    • Yes
  • Footprint
    • 1.35m x 1.4m
  • Interface Options
    • I²C
    • SPI
    • MIPI
    • HiSpi
    • Sub-VLDS
    • SLVS Parallel
  • Operating System
    • VxWorks (RT)
    • Windows Embedded Standard 7
  • Dispense Technology
    • Positive Displacement
    • Micro-Jetting
  • UV Cure Wavelengths
    • 365nm
    • 385nm
    • Broadband UV

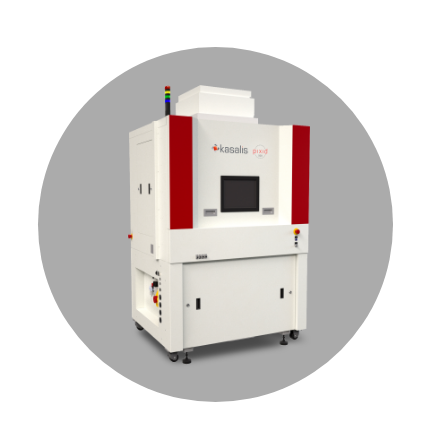

Pixid 500-D


  • Suitable Applications
    • Laser Projection
    • Image Projection
  • UPH
    • 450*
  • AA Heads
    • 2
  • Resolution (linear)
    • < 0.2µm
  • Resolution (Angular)
    • < 0.01 deg
  • Auto-Load / Upload Option
    • Yes
  • Footprint
    • 1.35m x 1.4m
  • Interface Options
    • I²C
    • SPI
    • MIPI
    • HiSpi
    • Sub-VLDS
    • SLVS Parallel
  • Operating System
    • VxWorks (RT)
    • Windows Embedded Standard 7
  • Dispense Technology
    • Positive Displacement
    • Micro-Jetting
  • UV Cure Wavelengths
    • 365nm
    • 385nm
    • Broadband UV

* UPH numbers are typical but vary according to application

To find out more

If you are interested in our Pixid systems, please contact us or download our fact sheet.
